Super Fine Thermo TVS-8500

Super Fine Thermo TVS-8500


The peak of thermography equipment.

High speed measurement of 120 frames/second.
High sensitivity of 0.025°C.
External sync for data recording.
Equipped with a large capacity realtime recorder which can store up to 1000 frames of thermal images.


Super Fine Thermo TVS-8500

TVS-8500 Specifications


Type
TVS-8501
TVS-8502
Detector InSb FPA (256x256 pixels)
Detector cooling method Stirling Cooler
Temperature measurement range -40°C to 900°C
Minimum temperature resolution 0.025°C or less (30°C black body)
Scaning Speed 1/120 second
Wave length 3.5 to 4.1μm 4.5 to 5.1μm
Field of view (FOV) 14.6(H)x14.6(V) (when standard lens is used)
Measured distance 30cm to infinity
A/D conversion 14 bit
Correction function Emissivity/reflectivity correction, auto room temperature correction
Display 5 inch LCD
Functions Multi point temperature measurement, memory, zoom, isotherm
Highest temperature display, display color selection, averaging, A scope
Auto/manual temperature range switching
Thermography recording/play back Compact flash card 50 frames with 10MB card. Compact flash card 50 frames with 10MB card.
Real Time Recorder over 1000 frames.
Image output NTSC, PAL
External interface RS-232C RS-232C, IEEE1394
Input power AC100V/AC240V, 50/60Hz
Dimensions 200(W)x250(D)x120(H)mm (excluding protrusions)
Weight Approx. 5kg or less

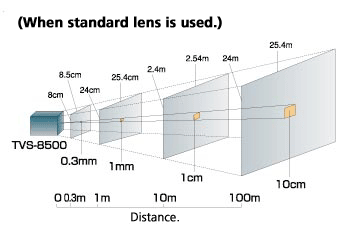

Distance and FOV size

Distance and FOV size


Distance and FOV size

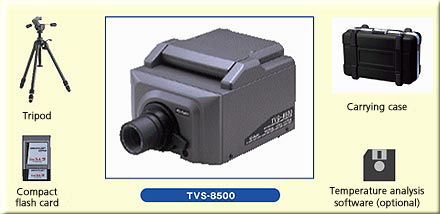

Standard configuration items

Standard configuration items


Standard configuration items

Camera
1ea
Compact flash card (16Mb)
1ea
Carrying case
1ea
Tripod
1ea
Operation manual
1ea
PC card(to be inserted into PCI slot)*
1ea
Connecting cable (3.5m)*
1ea
Image capturing software (CD)*
1st
* marked items come only with TVS-8502.


Options for Super Fine Thermo TVS-8500

Option Type Remarks
Wide Angle Lens 3X TVL-8510A
Details ・ External Picture
Close Up Lens 100μm TVL-85100U
Details ・ External Picture
Microscopic Lens 10μm TVL-8510U
Details ・ External Picture
Real Time Data Transfer IEEE-1394-7 OS:Windows ®98 SE
Windows® 2000
Windows® XP
High speed transfer/recording of thermal image in 1/30 second is realized
Analysis Software
Upgrade Kit   from TVS-8501to TVS-8502


  • • Specifications and outline on this page are subject to change without notice for improvement.
  • • Company names and commodity names are trade names or registered trade marks of each company.
  • • Nippon Avionics Co., Ltd. will not be responsible for any damage of infrared detectors due to incoming strong light (e.g. laser) through lens(es).
  • • This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization may be required. When exporting from country of initial purchase destination, please be sure to follow that country's export regulations as it may require an export permit beforehand.
