Realtime Image Transfer Kit ・ Transfers and records 12 bit full frame thermal image in TVS series in realtime of 1/30 second via IEEE-1394 bus. ・ Continuous recording function assures ideal recording timing. High speed transfer/recording of thermal image in 1/30 second is realized.

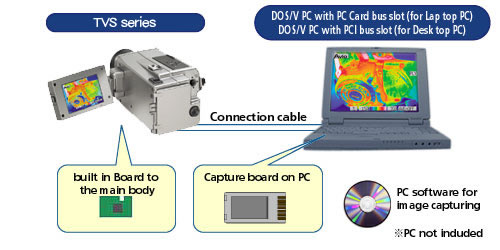

Realtime Image Transfer Kit Configuration drawing Functions ● Thermal image in TVS series is transferred and recorded in realtime to a PC via IEEE1394 bus. ● Format conversion of recorded image into IRI files TVS series image file format). (Optional analysis software is necessary for analysis of thermal images in IRI file.) Specifications Standard IEEE1394 Functions 1) Transfer and record of thermal images into PC at the rate of 1/30 second per frame.* 2) Display of thermal images on PC monitor at the rate of 1/30 second per frame. 3) Data conversion to IRI file ( TVS series image file format) Power consumption 3W or less System Requirement OS: Windows® 98 SE Windows® 2000 Windows® XP PC: Pentium III 450Hz or better 128Mb Memory PCI rev.2.1(Desk Top) or Card Bus(Laptop) HDD:100Mb,Ultra ATA33 or better, DMA mode Display:1024x768, High Color(16bit) *The transfer speed of 1/30 second is for NTSC output model. PAL output model runs at 1/25 second. Standard configuration items ・ PCI Board(for Desk Top PC)or PC Card(for Laptop PC) 1ea ・ Software 1ea ・ Interconnecting Cable 1ea ・ Operation Manual １st

Specifications and outline on this page are subject to change without notice for improvement.
This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization is needed.
When exporting out of your country, please be sure to follow your country's export regulations too, as it may require permit beforehand.
Company names and commodity names are trade names or registered trade marks of each company.
