InfReC R300SR Series : Specifications
Discontinued Models
Item | R300SR | R300SR-D | R300SR-H | R300SR-HD | R300SR-S | R300SR-SD | ||
---|---|---|---|---|---|---|---|---|
Basic Performance | Infrared Detector | Uncooled Focal Plane Array (microbolometer) | ||||||
Spectral Range | 8 to 14μm | |||||||
Measuring Range | -40 to 500°C | -40 to 2000°C | -40 to 120°C | |||||
Sensitivity (NETD) | 0.03°C at 30°C (with S/N improvement) | 0.025°C at 30°C (with S/N improvement) |
||||||
Accuracy | ±1°C (Range 1) *1 | ±2°C or ±2% | ||||||
Frame Rate | 60Hz | 8.5Hz | 60Hz | 8.5Hz | 60Hz | 8.5Hz | ||
Detector Pixels | 320(H)×240(V) pixels | |||||||
Recording Pixels | Standard:320(H)×240(V) pixels, SR mode:640(H)×480(V) pixels *2 | |||||||
Field of View | 22°(H)×17°(V) (with standard lens) | |||||||
Spatial Resolution | Standard : 1.2 mrad, SR mode : equivalent to 0.8 mrad *3 (with standard lens) | |||||||
Focal Distance | 10cm to infinity (with standard lens) *4 | |||||||
Image Display | Auto Functions | Auto-scale, Auto-focus, Full-auto | ||||||
Color Pallet | Olive, Rainbow, Iris, Brightness, Hot iron, Hot white, Hot black | |||||||
Gradation | 256/32/16/8 tones | |||||||
Visual Camera | CMOS camera 3.1M pixels Fuision, Picture-In-Picture, Alpha Blending, Split-Screen |
|||||||
Display Functions | Digital Zoom | 1 to 4 times continuous zoom (with display positioning scroll) | ||||||
Grid Overlay | Provided | |||||||
Multi-Image-Display | Display 9 images (replay mode) | |||||||
Image Quality Improvement | Averaging | Off / Σ4/ Σ8/ Σ16 (with ghost rejection) | ||||||
Edge Enhancement | Provided | |||||||
Measuring Functions | Point Temperature | 10 Movable Points | ||||||
Temperature Search | MAX, MIN | |||||||
Delta Temperature | Provided | |||||||
Temperature Display in Assigned Region | MAX, MIN and AVG in Box (for up to 5 Boxes) | |||||||
Line Profile | Horizontal, Vertical or Horizontal & Vertical | |||||||
Alarm function | Alarm Sound, Alarm Display, Color Alarm(ISO), Ext Alarm Output, Alarm Recording | |||||||
Temperature Correction Function | Emissivity, Environment/Background, Distance, NUC | |||||||
Emissivity | Multi-Point Correction, Emissivity Reverse Calculation, Emissivity Table | |||||||
Storage / Output | Storage Device | SD Card, Compatible to SDHC | ||||||
Data Storage | Still Image : JPEG with Temperature Data (14 bit), Recorded, Movie : SVX file (exclusive), Visual Image Simultaneously | |||||||
Super Resolution | Provided | |||||||
Panoramic Image | Horizontal Equivalent to 70°, Vertical Equivalent to 52° | |||||||
External Trigger Recording | Provided | |||||||
Interval Recording | 3s to 60min, Visual Image Simultaneously Recorded | |||||||
Movie Recording | Max 10 fps in SD Card | Max 8.5 fps in SD Card | Max 10 fps in SD Card | Max 8.5 fps in SD Card | Max 10 fps in SD Card | Max 8.5 fps in SD Card | ||
Voice Annotation | 30sec Recording/Replay per Image | |||||||
Text Annotation | Annotate up to 256 Characters with each Thermal Image Import Characters from SD Card | |||||||
Interface | USB2.0 | Mass-Storage/Image Transfer (Thermal Image Max 60Hz, Visual Image Max 7.5Hz) *5 | Mass-Storage *6 | |||||
Video output | NTSC / PAL Changeover | |||||||
Alarm output | Provided (Contact Closure. No Voltage) | |||||||
External trigger input | Provided (Pulse Signal) | |||||||
Auxiliary Measuring Functions | Graphical User Interface's Supported Language | English, French, Spanish, German, Italian, Portuguese, Russian, Finnish, Danish, Norwegian, Swedish, Dutch, Chinese (Traditional, Simplified), Korean and Japanese. | ||||||
Display | 3.5" LCD Monitor (with Tilt and Brightness Adjustment Available), Color View Finder (with Tilt Mechanism) |
|||||||
Auxiliary | Laser Pointer | Provided (Class-2 Red color) | ||||||
LED Light | Provided | |||||||
Wired Remote Control Unit | Provided | |||||||
Others | Environment Resistance | Operating temperature / Humidity | -15°C to 50°C, 90%RH | |||||
Vibration / Shock | 29.4m/sec2(3G), 294m/sec2(30G) | |||||||
Dust / Splash Proof | IP54 | |||||||
Battery Operation | 2h (Typ), Rechargeable Li-Ion battery, | |||||||
Dimensions | Approx. 121mm(H)×105mm(W)×193mm(D) (excluding projections) | |||||||
Weight | Approx. 1.3kg (including Battery Pack) | |||||||
Standard Accessories | AC Adapter ×1, Battery Charger ×1, Rechargeable Li-Ion Battery ×1, SD Card ×1, USB Cable ×1, Wristband ×1, Grip Belt ×1, Software ×1, Operation Manual ×1, and Carrying Case ×1 | |||||||
Standard Software | InfReC Analyzer NS9500Pro | InfReC Analyzer NS9500Std |

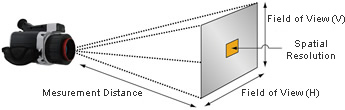

Mesurement Distance and Field of View
Standard lens
Mesurement Distance | 10cm | 30cm | 1m | 2m | 5m | 10m |
---|---|---|---|---|---|---|
Field of View | 22°×17° | |||||
3.8×2.9cm | 11×9cm | 38×29cm | 76×58cm | 1.9×1.4m | 3.8×2.9m | |
Spatial Resolution (SR mode) *3 |
0.12mm (0.08mm) |
0.36mm (0.24mm) |
1.2mm (0.8mm) |
2.4mm (1.6mm) |
6mm (4mm) |
12mm (8mm) |
2x Telephoto Lens
Mesurement Distance | 10cm | 30cm | 1m | 2m | 5m | 10m |
---|---|---|---|---|---|---|
Field of View | 11°×8.5° | |||||
- | - | 19×15cm | 38×30cm | 95×75cm | 1.9×1.5m | |
Spatial Resolution (SR mode) *3 |
- | - | 0.6mm (0.4mm) |
1.2mm (0.8mm) |
2.4mm (1.6mm) |
6mm (4mm) |
0.5x Wide Angle Lens
Mesurement Distance | 10cm | 30cm | 1m | 2m | 5m | 10m |
---|---|---|---|---|---|---|
Field of View | 44°×34° | |||||
- | 22×18cm | 76×57cm | 152×114cm | 3.8×2.9m | 7.6×5.8m | |
Spatial Resolution (SR mode) *3 |
- | 0.72mm (0.48mm) |
2.4mm (1.6mm) |
4.8mm (3.2mm) |
12mm (8mm) |
24mm (16mm) |
72μm Close-up Lens
Spatial Resolution | 72μm |
---|---|
Working Dinstance | 56mm |
Field of View | 23×17mm |
- *1 Environmental Temperature: 10 to 40℃
- *2 Static image only
- *3 This increased resolution results from detecting characteristic points within all frames acquired by the SR process and removing such effects as those caused by hand vibration.
- *4 For defined Temperature Accuracy supported : 50 to cm to infinity
- *5 R300SR-D/R300SR-HD:Thermal Image Max 8.5Hz, Visual Image Max 7.5Hz
- *6 Real-Time Image Transfer for PC monitor and capture supported when used with NS9500Pro (bundled with R300SR/R300SR-D/R300SR-H/R300SR-HD, optional for R300SR-S/R300SR-SD)
- • Specifications and outline on this page are subject to change without notice for improvement.
- • Company names and commodity names are trade names or registered trade marks of each company.
- • Nippon Avionics Co., Ltd. will not be responsible for any damage of infrared detectors due to incoming strong light (e.g. laser) through lens(es).
- • This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization may be required. When exporting from country of initial purchase destination, please be sure to follow that country's export regulations as it may require an export permit beforehand.
