InfReC R300SR Series

Infrared Camera [InfReC]

[InfReC] is the coined abbreviation word of "Infrared Camera" and also has the meaning of [The Device Recording Infrared Information].
Our product research and development is targeted at improving the quality of life by protecting people and simplifying their daily tasks while measuring temperature, controlling environments, enhancing security, etc.

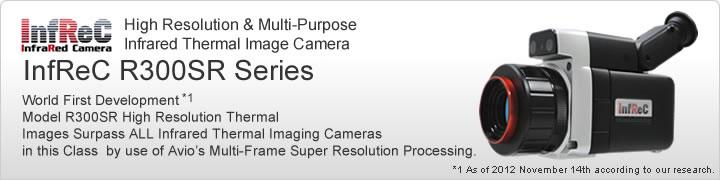

InfReC R300SR Series

Highly Sensitive, High Resolution, High Quality
Thermal Image Capturing for Thermographers.

Six models available by a temperature measurement range, temperature sensitivity, frame rate and applications

Frame rate Model Features
60Hz R300SR Standard model; offers professional performance for a wide variety of applications.
Sensitivity (NETD): 0.03°C / Measuring Range: -40 to 500°C
R300SR-H Pyrometry model; realize measurement range of the temperature up to 2000°C.
Sensitivity (NETD): 0.03°C / Measuring Range: -40 to 2000°C
R300SR-S High resolution model; surpasses all Infrared Imaging Cameras in this Class.
Sensitivity (NETD): 0.025°C / Measuring Range: -40 to 120°C
8.5Hz R300SR-D Standard model; offers professional performance for a wide variety of applications.
Sensitivity (NETD): 0.03°C / Measuring Range: -40 to 500°C
R300SR-HD Pyrometry model; realize measurement range of the temperature up to 2000°C.
Sensitivity (NETD): 0.03°C / Measuring Range: -40 to 2000°C
R300SR-SD High resolution model; surpasses all Infrared Imaging Cameras in this Class.
Sensitivity (NETD): 0.025°C / Measuring Range: -40 to 120°C

Onboard Super Resolution Processing Improves Thermal Image Quality Using 4x Pixel Count Enhancement

Multi-frame Super Resolution Processing is a technology that restores the details originally inherent to the object while enhancing the resolution and minimizing fuzziness and noise of the image.
This is accomplished by performing sophisticated calculations on continuous multi-frames of the image.

  • Standard: 320 x 240 pixels Spatial resolution: 1.2 mrad
  • Super Resolution: 640 x 480 pixels Spatial resolution: equivalent to 0.8 mrad *2

Onboard Super Resolution Processing Improves Thermal Image Quality Using 4x Pixel Count Enhancement.

  • *2 This increased resolution results from detecting characteristic points within all frames and aligning them to compensate for small vibrations such as those introduced by hand movement.

Super Resolution Software Enhances Image Clarity

The "InfReC Analyzer NS9500" series analysis software with a SuperResolution "Sharpness" algorithm is provided as a standard R300SR series camera accessory. The Sharpness algorithm provides additional noise reduction and edge enhancement of the object's captured thermal image. This creates clearer images that easily show small temperature differences such as tiny cracks on a structure's wall or the patterns of a printed wiring board.

Super Resolution Software Enhances Image Clarity

"Quick Panorama Function" Improves Synthetic Accuracy and Ease of Operation

The R300SR series camera "Quick Panorama Function" automatically captures a Panoramic Thermal Image at arbitrary sweep angles up to approximately 70° horizontally and 52° vertically without having to take individual pictures. The Panoramic Image can be photographed as a JPEG file without using a PC and easily downloaded and attached directly to a report. The "Quick Panorama Function" improves synthetic accuracy by increasing the number of the frames used for synthetic images from maximum four frames to six frames over the sweep angle to enable capturing objects of various sizes.

Quick Panorama Function

Panorama Thermal Image

Scroll digitally zoomed images using convenient scroll indicator

Both super resolution image data and panoramic image data can be displayed in continuous zoom up to four (4)times. The scroll indicator feature allows any portion of the image to be easily enlarged to see more details while current image position is shown.

Standard (SR mode)
Standard
(SR mode)
2x digital zoom (SR mode)
2x digital zoom
(SR mode)
4x digital zoom (SR mode)
4x digital zoom
(SR mode)
