InfReC R300SR Series

Infrared Camera [InfReC]

[InfReC] is the coined abbreviation word of "Infrared Camera" and also has the meaning of [The Device Recording Infrared Information].
Our product research and development is targeted at improving the quality of life by protecting people and simplifying their daily tasks while measuring temperature, controlling environments, enhancing security, etc.

InfReC R300SR Series : Features

1. User Friendly Operation

ViewFinder, Big Lens Tube

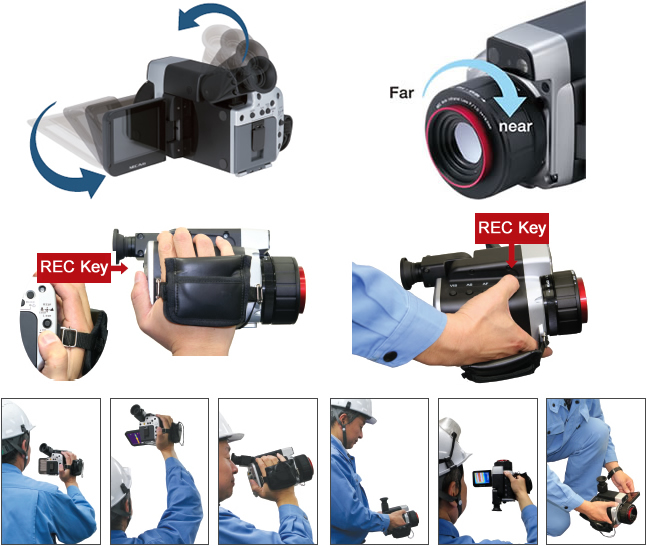

Ergonomically Sound. Large Focus Ring, Multi-angle Tilting 3.5 inch LCD Display and two (2) Shutter-buttons ensure flexible and comfortable shooting position.

ViewFinder, Big Lens Tube

Full Automatic Function

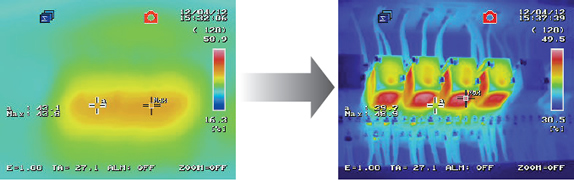

Instant adjustment of the thermal images
Temperature scale and focus are automatically and simultaneously adjusted by one button on full automatic function.
Built in high-speed motor grants swift focus adjustment.

Full Automatic Function

Visual / thermal fusion, simultaneous shooting

Fusion and Picture-In-Picture with Alpha Blending, and Split-Screen Display of Thermal / Visual Image Various visible image composition modes, allow easy comparison between thermal image and visible image.

Picture-In-Picture
Picture-In-Picture
Split-Screen
Split-Screen
Alpha Blending
Alpha Blending

Close Focus with standard lens

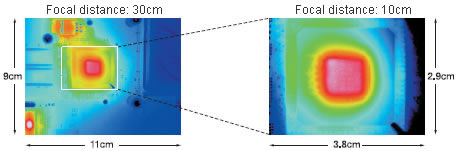

Realize 80μm minimum Spatial Resolution (SR mode) at 10cm distance.
A standard lens with 10 cm close focus capability combined with Multi-frame Super Resolution Technology yields a 80μm Spatial Resolution.

Close Focus

Remote Control

To Top of  Page

2. Temperature Measurement Features

Various measurement functions

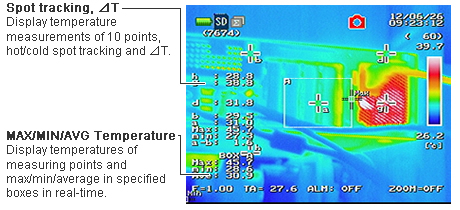

Spot tracking, ⊿T / MAX/MIN/AVG Temperature

Internal emissivity table.

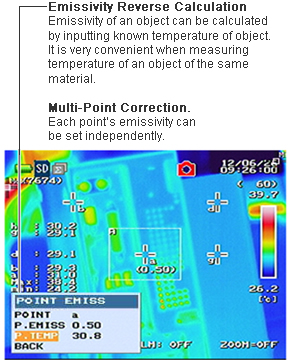

Emissivity Reverse Calculation / Multi-Point Correction

Line profile

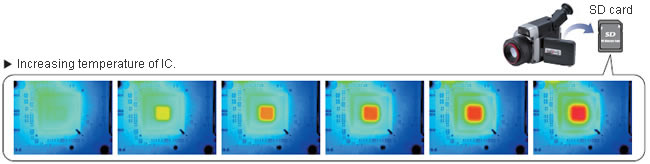

Fully Radiometric Movie Recording on SD Card

A maximum of 10 frames/second of video data can be recorded on SD card without a PC. Temperature data on the video can be analyzed with included software. R300SR series cameras can capture thermal images of production line/production equipment such as a metallic mold, an injection-molding machine, or an object that moves at high speeds.

Fully Radiometric Movie Recording on SD Card

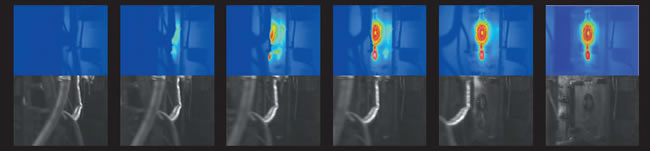

Both Thermal and Visual Images Are Captured Simultaneously

Transfer thermal images to a PC at 60 frames/second via USB2.0.
Capture real-time and visual images and simultaneously analyze thermography.

Both Thermal and Visual Images Are Captured Simultaneously

「熱画像」「可視画像」を同時録画

Event Trigger Recording (External and Alarm-Triggered)

The event trigger recording function enables a simple system to be built.

External Trigger Recording

Capturing of the Thermal images and Visual images or recording of the Video (Thermal images only) will start at the external signal.

External Trigger Recording

Application example
[Evaluation of the metallic mold design]
Surface temperature of the mold is measured at the time of the trigger signal provided by opening and/or shutting of the mold.

Alarm recording

Record Thermal image according to a preset measurement condition.

Alarm recording

Application example
[Environmental examination]
In environmental tests of PWB, thermal image capture will start from an internal trigger that occurs when an abnormal temperature is measured.

To Top of  Page

3. Software

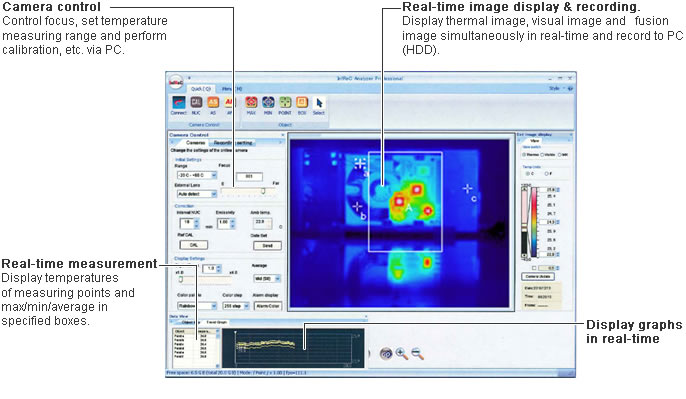

Rich functions are provided for both On-line and Off-line analysis requirements. For example, the high performance on-line analysis software NS9500Professional (standard accessory) provides Thermal Image and Visual Image Real-time Measurement, Analysis and Report output.

On-line Analysis Software is Standard

On-line Analysis Software is Standard

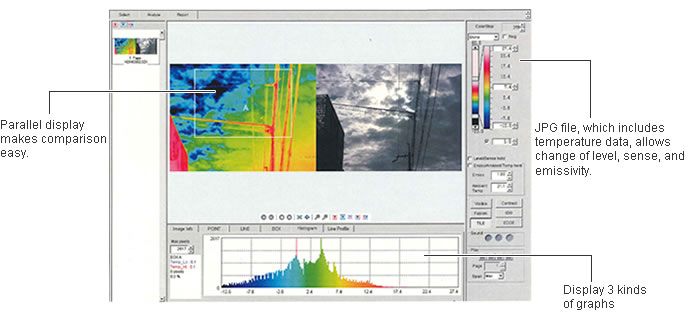

Analysis (offline)

Analysis (offline)

3 kinds of graphs

Line profile
Line profile
Histogram
Histogram

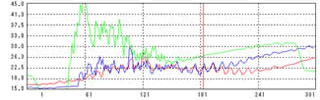

Trend graph
Trend graph

Radiated heat capacity calculation

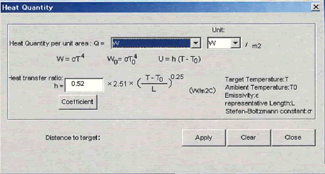

Calculate the radiated heat capacity of the specific figure domain and analyze the heat loss from the object.

Radiated heat capacity calculation

Length/Square measure calculation

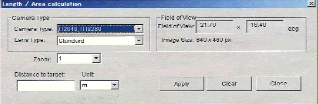

Input the distance to the object, and length/square measure of the setting figure on the object can be calculated.

Length/Square measure calculation

Panoramic Thermal Image

From six (6) continuous frames a highly accurate panoramic image can be synthesized.

Panoramic Thermal Image

Default Report Template can be easily edited

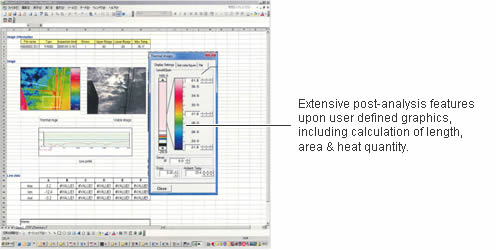

Freely modifiable reporting formats using WORD or EXCEL allow adding company logo, etc.

Default Report Template can be easily edited

  • • Specifications and outline on this page are subject to change without notice for improvement.
  • • Company names and commodity names are trade names or registered trade marks of each company.
  • • Nippon Avionics Co., Ltd. will not be responsible for any damage of infrared detectors due to incoming strong light (e.g. laser) through lens(es).
  • • This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization may be required. When exporting from country of initial purchase destination, please be sure to follow that country's export regulations as it may require an export permit beforehand.
