320x240 Pixel Camera Module C100C/C100CT/C100V Specifications,Outline View
Discontinued Models
Specifications
| Item | C100C | C100CT | C100V | |
|---|---|---|---|---|
| Images |
|
|
||
| Detector | 320x240 Uncooled Vox microbolometer | |||
| Pixel Size | 23.5μm | |||
| Spectral range | 8 to 14μm | |||
| NETD (with F/1 lens) |
50mk (L range, at 30°C) |
|||
| Sensor frame rate | 60Hz * 8.5Hz available for C100C and C100V |
|||
| Dynamic Range (with F/1 lens) |
L range: -40°C to 120°C H range: 0°C to 500°C |
|||
| Video Output | NTSC or PAL composite video | |||
| Digital Output | ITU-R, BT656 video data / 16bit raw data | TBD | ||
| Control Interface | RS-232C | |||
| Power supply | 12VDC±10% | |||
| Power Consumption (at 20°C) |
Typ. 4.5W (Max 7W) * without rush current |
|||
| Size (mm) (without Lens, protrusion) |
62(W)x46(H)x50(D) | 65(W)x50(H)x100(D) | ||
| Weight (without lens) | 150g | 310g | ||
| Operating temperature | -30°C to +60°C (With 4.5°C/W heat sink) |
-15°C to +50°C (With 5°C/W heat sink) |
||
| Case | Without case | With case | ||
| Without Lens Model | available | - | ||
| Image Quality Improvement |
BRIGHTNESS | AUTO, MANUAL (64step) | ||
| CONTRAST | AUTO, MANUAL (64step) | |||
| AVERAGING | OFF, L, M, H | |||
| SHARPNESS | OFF, 1, 2, 3, 4, 5 | |||
| GAMMA Correction | ON, OFF | |||
| Flexible Image Control | GUI | |||
| Display Processing |
Polarity | White-hot, Black-hot | ||
| ZOOM | X1, X2, X4 | |||
| Binarization | available | - | available | |
| COLOR EMPHASIS | available | - | available | |
| Temperature Measurement | - | available | - | |
| reading | - | center point | - | |
| accuracy | - | +-15% or +-15°C *at L Range |
- | |
| Color Pallet | - | 2 pallets, 256 color steps | - | |
| Isotherm | - | available | - | |
| Optional Lens | 8mm Lens , 50°(H), F=1.0 | |||
| 14mm Lens , 30°(H), F=1.4 | ||||
| 25mm Lens , 17.1°(H), F=1.0 | ||||
| 50mm Lens , 8.6°(H), F=1.0 | ||||
Outline view

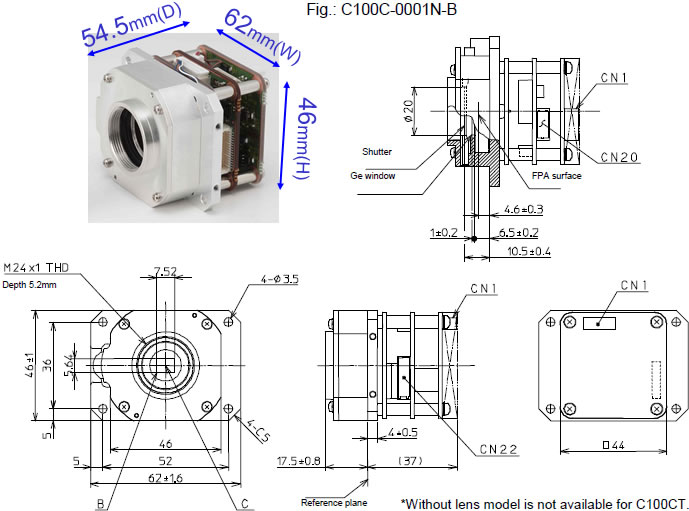

C100C, CT

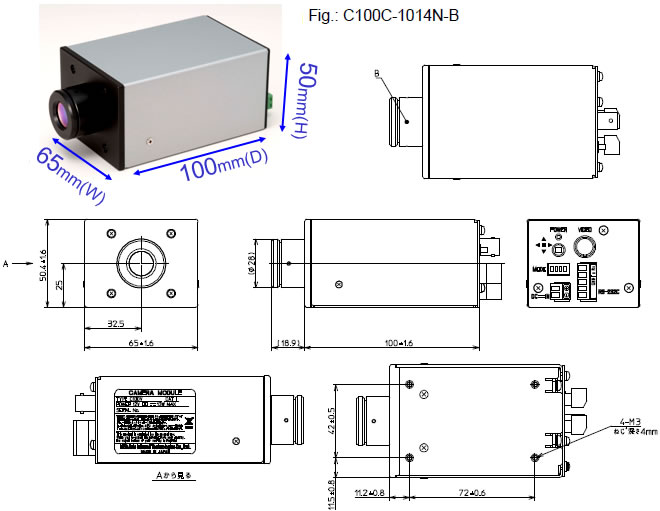

C100V
- • Specifications and outline on this page are subject to change without notice for improvement.
- • Company names and commodity names are trade names or registered trade marks of each company.
- • Nippon Avionics Co., Ltd. will not be responsible for any damage of infrared detectors due to incoming strong light (e.g. laser) through lens(es).
- • This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization may be required. When exporting from country of initial purchase destination, please be sure to follow that country's export regulations as it may require an export permit beforehand.
