InfReC R500 Series

Infrared Camera [InfReC]

[InfReC] is the coined abbreviation word of "Infrared Camera" and also has the meaning of [The Device Recording Infrared Information].
Our product research and development is targeted at improving the quality of life by protecting people and simplifying their daily tasks while measuring temperature, controlling environments, enhancing security, etc.

InfReC R500 Series

Discontinued Models

Outstanding 1280x960 Resolution by Avio SR Technology! *1

4 Models available by a temperature measurement range, frame rate and applications

Frame rate Model Features
30Hz R500Pro Full featured for R&D model;
Suitable for use in R&D, for making high temperature measurements, and for measuring sequential data.
Measuring Range: -40 to 2000°C
R500 Facility diagnosis model;
Excellent choice for inspection of electrical facilities and remotely located pipes.
Measuring Range: -40 to 500°C
7.5Hz R500Pro-D Full featured for R&D model;
Suitable for use in R&D, for making high temperature measurements, and for measuring sequential data.
Measuring Range: -40 to 2000°C
R500-D Facility diagnosis model;
Excellent choice for inspection of electrical facilities and remotely located pipes.
Measuring Range: -40 to 500°C

1.2 Megapixels Infrared Thermal Imaging Camera

Unrivaled High Resolution Images expand temperature measuring field of non-contact temperature measurement.

  • Super Resolution Mode (1280 x 960 pixel) Spatial Resolution: equivalent to 0.58mrad *2
  • Standard Mode (640 x 480 pixel) Spatial Resolution: 0.87mrad

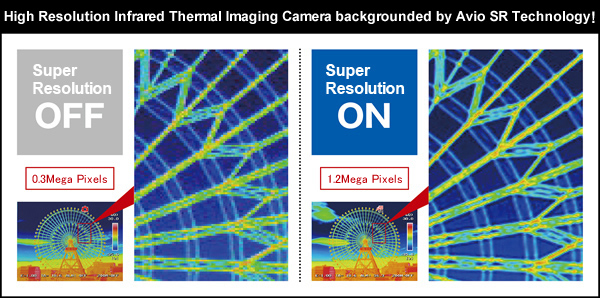

Realize  High Resolution  1280×960 by Multi-Frame  Super Resolution Processing

High Sensitivity, High Quality

Appropriate to Evaluation with accuracy and Non-Destructive Inspection for catching slight difference of temperature.

  • Sensitivity (NETD) : 0.03°C at 30°C *3
  • Temperature accuracy : ±1°C *4

Shoot Close-up 58um Images with Standard Lens

Very small objects can be measured and recorded with the combination of the R500's 10cm minimum focal distance standard lens and Avio's built-in "Multi-Frame Super Resolution Processing" function without the need of an optional lens.

  • Minimum Spatial Resolution : equivalent to 58μm *2 <in Super Resolution(SR) Mode>

A Wide Viewing Angle Lens increases Working Efficiency

The standard wide viewing angle lens captures large area images when working in limited space and improves overall shooting efficiency.

  • Field of view(F.O.V.) : 32°(H) x 24°(V)
  • *1 : in Super Resolution (SR) Mode
  • *2 : This increased resolution results from detecting characteristic points within all frames and aligning them to compensate for small vibrations such as those introduced by hand movement.
  • *3 : with S/N improvement
  • *4 : at environmental temperature 20 to 30°C in range 1
Get ADOBE® READER®
To open .pdf documents, you will need the latest Adobe Acrobat Reader software.
Download Adobe software from left.

If you cannot open the document on your web-browser,
right-click the link and choose option 'Save Target As' to download the pdf into your local storage medium, first.
Then, launch the saved file from your storage device (i.e. HDD of your PC etc.).

  • • Specifications and outline on this page are subject to change without notice for improvement.
  • • Company names and commodity names are trade names or registered trade marks of each company.
  • • Nippon Avionics Co., Ltd. will not be responsible for any damage of infrared detectors due to incoming strong light (e.g. laser) through lens(es).
  • • This product is subject to Japanese Export Control Law. Depending on its destination, prior assessment and authorization may be required. When exporting from country of initial purchase destination, please be sure to follow that country's export regulations as it may require an export permit beforehand.
