InfReC R500 Series : Features
Discontinued Models

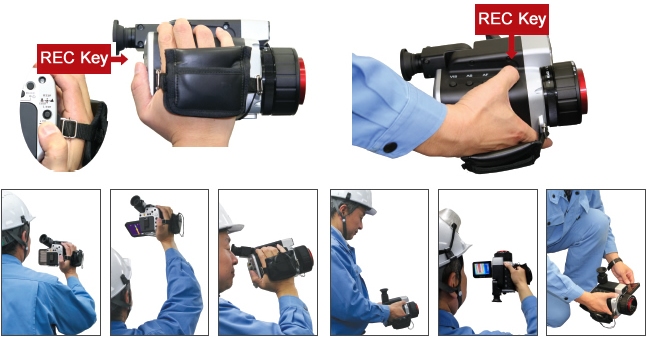

Designed for Real World Field Operations
- Rotary LCD monitor is built in for multi-angle shooting.
- View finder is built in to maintain clear visibility when outdoor.
- Easy shooting from any angle by FRZ/REC buttons placed in 2 positions.
- 5 Megapixel visual camera adds clear visual images to thermal and visual "Split-screen Images" and "Fusion Images".
- Picture-In-Picture
- Split-Screen
- Alpha Blending

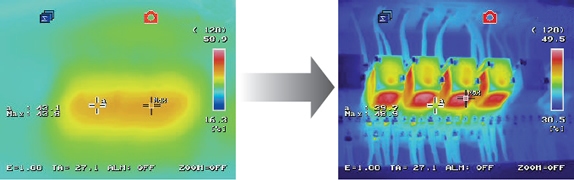

- Temperature scale and focus are automatically and simultaneously adjusted by one button on full automatic function.
Built in high-speed motor grants swift focus adjustment.
- Temperature scale and focus are automatically and simultaneously adjusted by one button on full automatic function.
Built in high-speed motor grants swift focus adjustment.
Multiple Recording Modes
- Super Resolution (SR) Mode for high resolution recording
- Quick Panorama Mode to shoot continuous wide angle images up to a maximum of 100° horizontal.
- SD Movie Mode allows taking movies with the R500 camera at a maximum 3Hz frame rate. *1
- Interval recording of both thermal image and visual image simultaneously
- Trigger input and alarm output functions are provided for use with external instruments. *1
- *1:R500Pro, R500Pro-D only.
Various measurement functions

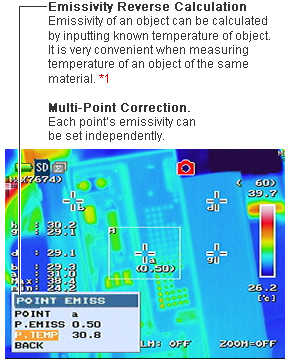

Various Mearurement Function; Max/Min Tracking, ⊿T, Emissivity Reverse-Caluculate , line profile

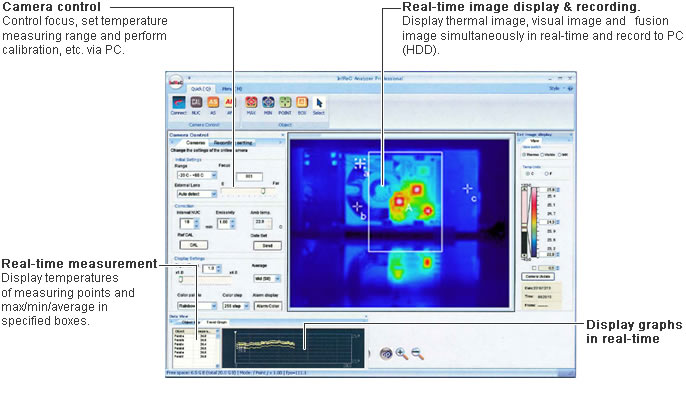

Simultaneously Record Real-Time Thermal and Visual Images to a PC via USB2.0
- Transfer analyzable thermal image movie data to PC at 15Hz
- Transfer visual image simultaneously with thermal image to PC
- NS9500Pro software for analyzing data in real time is provided as standard accessory with R500Pro/R500Pro-D.
Full Analysis Software
On-line Analysis Software is Standard

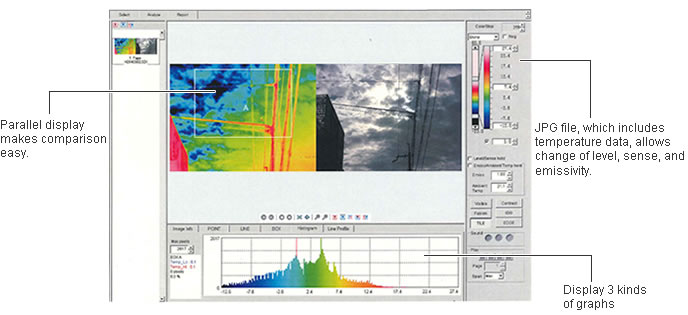

Analysis (offline)
3 kinds of graphs
- Line profile
- Histogram

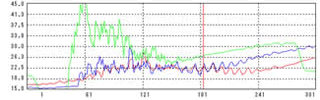

- Trend graph
Radiated heat capacity calculation
Calculate the radiated heat capacity of the specific figure domain and analyze the heat loss from the object.

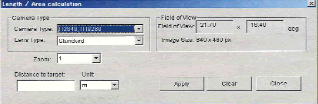

Length/Square measure calculation
Input the distance to the object, and length/square measure of the setting figure on the object can be calculated.
Panoramic Thermal Image
From six (6) continuous frames a highly accurate panoramic image can be synthesized.
Default Report Template can be easily edited
Freely modifiable reporting formats using WORD or EXCEL allow adding company logo, etc.
| Soft Name | Model | remarks |
|---|---|---|
| High-Performance Online Analysis Program InfReC Analyzer NS9500 Professional |
NS9500PRO | For On-line Analysis Software (Bundled with R500Pro / R500Pro-D) *2 |
| Multi-function Report Generator Program InfReC Analyzer NS9500 Standard |
NS9500STD | For Off-line Analysis Software (Bundled with R500 / R500-D) |
- *2 : To Transfer thermal image movie data by R500 is required to upgrade to "InfReC Analyzer NS9500 Professional" (optional software)
